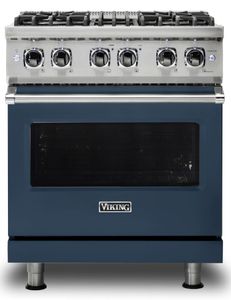

    Viking® 5 Series 30" Slate Blue Freestanding Dual Fuel Natural Gas Range


    Model #:

    VDR5304BSB

    Model #: VDR5304BSB
    450223
    Viking
    $9,399.00

    At a Glance

    Product Dimensions 37"h x 29.88"w x 28.69"d

    These are the icons - the style and power that introduced professional performance to the home. The 5 Series Ranges are equipped with a Pro Sealed Burner System, VariSimmer™ Setting and SureSpark™ Ignition System to ensure perfect temperature control even at the most delicate settings. From the delicate VariSimmer™ setting to the 15,000 BTUs, available on all burners, this is a precise and powerful sealed burner system. The Pro Sealed Burner System delivers precision control of all burners, including the TruPower Plus™ 18,500 BTU burner included on select models. And a host of ultra-premium features will help you perfect even the most challenging recipes.Read More

    Additional Savings Available

    $9,399.00

    What We Offer

    Protect Your Purchase
    None Selected
    Services
    None Selected

    Get to know this product.

    Product Overview

    Product Overview
    Commercial Type Cooking Power

    VSH (VariSimmer-to-high) Pro sealed burner system

    TruPowerPlus 18,500 BTU front right burner (select models)

    All other burners are 15,000 BTUs

    VariSimmer™ Setting for all burners

    All burners equipped with SureSpark™ Ignition System for consistent and reliable ignition every time

    Automatic re-ignition; surface burners light at any position on the knob and re-light if extinguished, even on lowest setting

    Heavy-duty BlackChrome™ knobs and square bezels shipped standard

    One of the largest oven cavities in the industry

    Patented Vari-Speed Dual Flow™ Convection System has the largest convection fan in the industry; the 8 1/2” fan works bi-directionally for maximum airflow and excellent cooking results

    Concealed 10-pass dual bake element provides precise temperature control

    Large 10-pass broiler with heat reflector

    Rapid Ready™ Preheat provides one of the fastest preheat times, so your oven is ready to begin cooking when you are

    Oven has six porcelain-coated rack positions and comes standard with three racks

    Gentle Close™ Door allows door to close slowly

    New larger window opening

    Three strategically located oven lights provide maximum visibility

    High-performance cooking modes include bake, convection bake, TruConvec™ Convection Cooking, convection roast, broil, convection broil, convection dehydrate, and convection defrost

    Easy Operation and Cleanup

    Exclusive one-piece tooled and porcelainized cooking surface for easy cleanup

    Burner caps are easily removable for quick cleaning

    Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots

    Self-cleaning porcelain ovens

    Concealed bake element(s) make for easy cleanup of oven cavity

    Included Accessories

    Island Trim (shipped standard with 30" range)

    Large Capacity Oven

    Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.

    VariSimmer™ Setting

    The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.

    Porcelainized Cooking Surface

    Keep spills in one place with the raised edges of our exclusive one-piece tooled porcelainized cooking surface. Raised edges around perimeter seal top to completely contain spills. Porcelanized for easy cleaning, durability and long lasting finish.

    SureSpark™ Ignition System

    The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.

    TruConvec™ Convection Cooking

    TruConvec™ Convection Cooking refers to the exclusive air circulation system employed by Viking convection ovens. Uses only convection element in rear of oven and fan-forced air - no direct heat from top or bottom.

    Vari-Speed Dual Flow™ Convection

    Maximize airflow and fluffiness with Vari-Speed Dual Flow™ Convection System. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blade in the industry provides maximum airflow.

    Concealed Bake Element

    Get more control and less mess with the 10-pass concealed bake element. This dual concealed bake element provides finer temperature control and makes oven clean up easy.

    TruGlide™ Full Extension Rack

    Six porcelain-coated rack positions and comes standard with three oven racks including one TruGlide™ Full Extension Rack.

    Rapid Ready™ Preheat System

    Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.

    Useful Documents
    Specifications

    General Specs

    ColorBlue, Stainless Steel
    Door ColorSlate Blue
    Handle ColorStainless Steel
    Air FryNo
    Cooktop FeaturesContinuous Grate, Digital Display, Sealed Burners
    Door Panel TypeGlass
    Type BurnerSealed
    Appliance Fit Width (in.)30
    Manufacturer Warranty5 Year
    Grate MaterialPorcelain-Enameled Cast Iron
    Total Capacity (cu. ft.)4.7
    Color Finish NameSlate Blue
    Collection5 Series
    Commercial Use ApprovedNo
    Number of Elements Burner Cooking Zones4
    ADA CompliantNo
    Induction CookingNo
    Range TypeFreestanding
    Smart CompatibleNo
    Wifi CapableNo
    Number of Elements/Burners4
    Burner TypeSealed
    Voltage208/240
    Frequency60
    Amp26.8/22.8
    Fuel TypeDual Fuel (NG)
    Number of Oven(s)Single
    Depth (in.)28.69
    Height (in.)37
    Width (in.)29.88
    Oven FeaturesDefrost, Self-Cleaning, Temperature Control
    Oven Cleaning MethodSelf Cleaning

    Overview

    Overall Height from BottomBase Height To top of side trim – minimum 35-7/8” (91.1 cm) to maximum 37” (94 cm); legs adjust 1-1/8” (2.9 cm) Additions to Base Height To top of island trim – add 1” (2.5 cm); to top of backguard – add 8” (20.3 cm) To top of high shelf – add 23-1/2” (59.7 cm)
    Overall Depth from RearTo end of side panel – 24-5/16” (61.8 cm); to front of door – 25-3/4” (65.4 cm) To end of door handle – 28-11/16” (72.9 cm)
    Gas RequirementsShipped natural or LP/Propane gas; field convertible from natural to LP with conversion kit (purchased separately); accepts standard residential 1/2” (1.3 cm) ID gas service line
    Electrical Requirements240-208VAC, 60 Hz electrical connection box on product, connect with locally supplied 3-wire, flexible cord or “pigtail”
    WarningProposition 65 Warning for California Residents
